DB Direct Burial PVC Utility Duct Installation
Although the direct burial installation for DB PVC Utility Duct is very much the same as it is for Schedule 40 and Schedule 80 PVC Pipe, there are some differences in back-fill requirements and performance capabilities. For example, smoother select fill dirt would be used as back-fill and there are no above-ground applications for Direct Burial PVC Conduit. Consequently, the ends of the DB PVC Conduit runs are directed into and terminate in approved electrical devices or boxes.
| 1. A crew begins by digging a trench for the conduit. |
 |

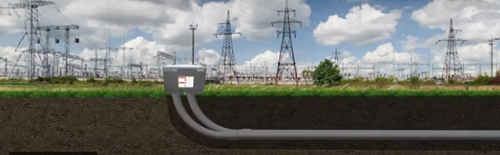

| 2. Rows of pipe are placed in the trench. |
 |

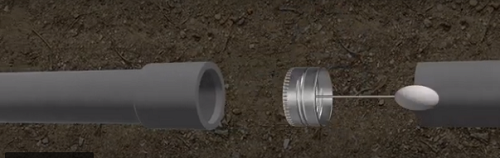

| 3. In between each run of pipe, the belled end of the conduit gets cemented to the straight end. If the pipe has been cut, a reamer tool must be used to remove burrs or debris before cementing. Once the pipe is smooth, the correct type of CANTEX PVC Solvent Cement gets applied to the inside of the belled end and the outside of the spigot or “straight” end of the conduit with a dauber. |
 |

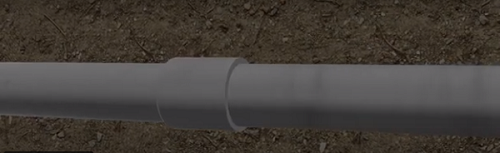

| 4. The pipe is twisted slightly to secure it. This process is repeated every 10 to 20 feet, depending upon the length of the conduit. |
 |

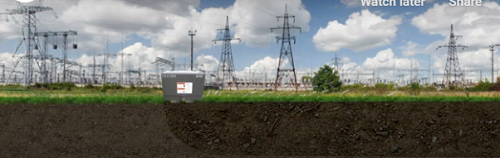

| 5. Once all the runs of PVC DB Conduit are in place and properly connected, the crew fills the trench with dirt. |
 |
DB Direct Burial & EB Encased Burial Cement Installation
Once again, the process for encasing Direct Burial and Encased Burial PVC Utility Duct in cement is basically the same as the cement encasement process for Schedule 40 and 80 PVC Pipe.

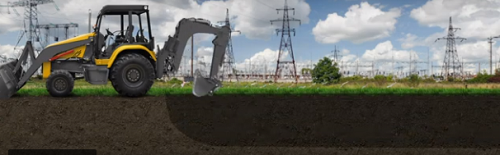

| 1. The process begins with the crew digging the trench. |
 |

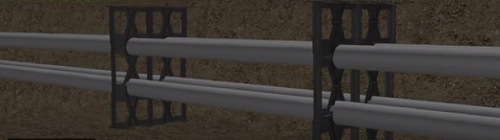

| 2. Once the trench is completed, CANTEX PVC Base Spacers must be placed in rows in the trench. The amount of spacers coordinates with how many rows of conduit are being installed. The rows of CANTEX PVC Intermediate Spacers are connected for every row of pipe. See the CANTEX Full Product Line Catalog for determining the NEC 70 spacer requirements for the necessary trade size of the spacers and the required separation space. Once again, the entire installation process needs to be repeated for every 10 or 20 feet, depending upon the length of the conduit. |
 |

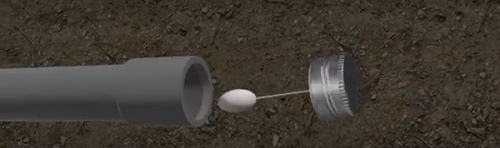

| 3. Once more, CANTEX PVC Pipe Solvent Cement needs to be applied with a dauber in between each run. |
 |

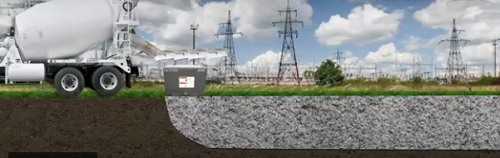

| 4. Once all the runs of conduit are in place and properly connected, the crew fills the trench with cement and the ends of the pipe are directed into and terminate in approved electrical devices or boxes. |
 |
